Level Eyes
The Level Eye is a reliable, industrial type sight glass. The unique reflex lens indicates the true level of liquid present without requiring a second lens. The lens appears dark in the presence of liquid and clear when liquid is not present.
The standard 1-1/2” length frost shield allows clear vision with refrigerant temperatures down to -20°F. The longer 2-1/2” frost shield is suggested for refrigerant temperatures below -20°F.
Level Eyes are available with clear or reflex lenses, with square or saddle milled ends, in carbon steel and stainless steel, in both welded and threaded housings.

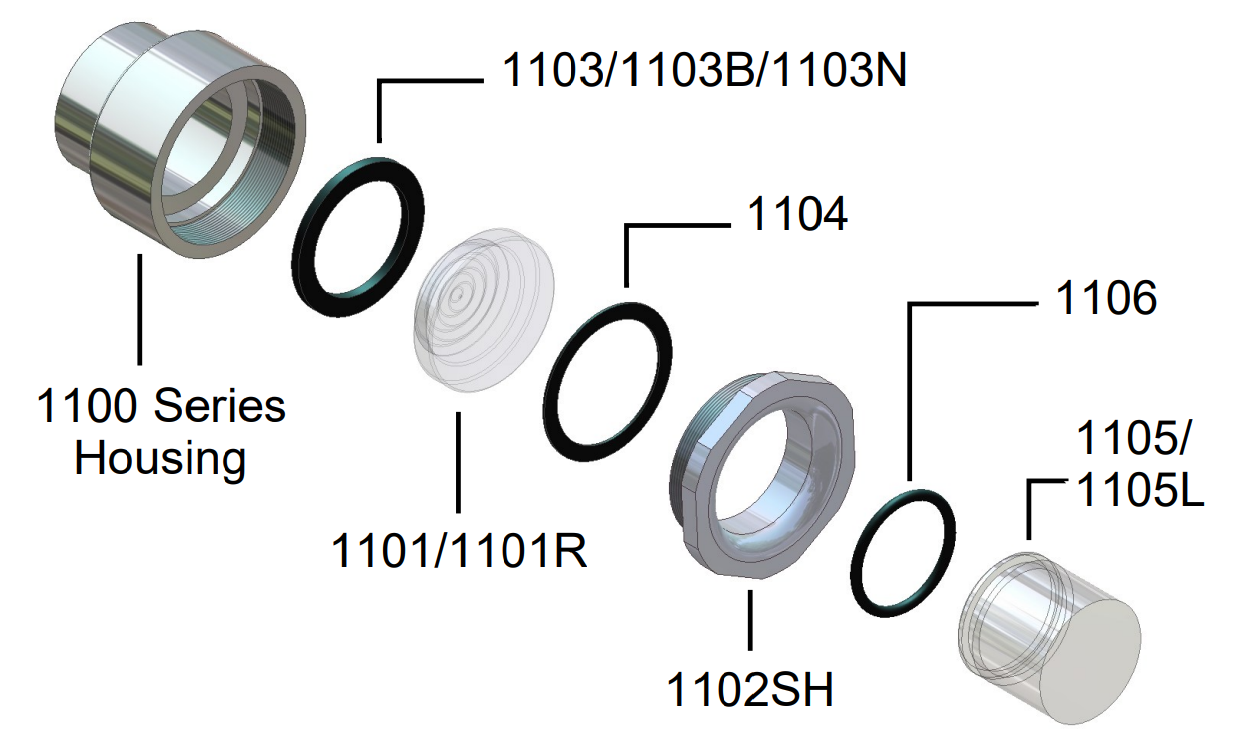

Gasket recommendations: Standard PTFE (Teflon) gasket (1103) is compatible with most common refrigerants and performs well under high pressure. Buna-N gasket (1103B) is recommended for use with Propane (R-290) and CO2 (R-744). Neoprene gasket (1103N) is available upon request and is compatible with most common refrigerants but is not recommended for systems using POE (polyolester) oil.
Phillips offers a Level Eye Tool for installing the retainer to the correct torque. Also offered for sale or lease are taps for cleaning damaged housing threads.

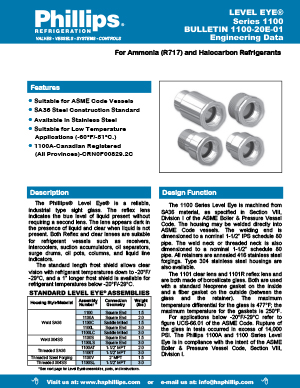

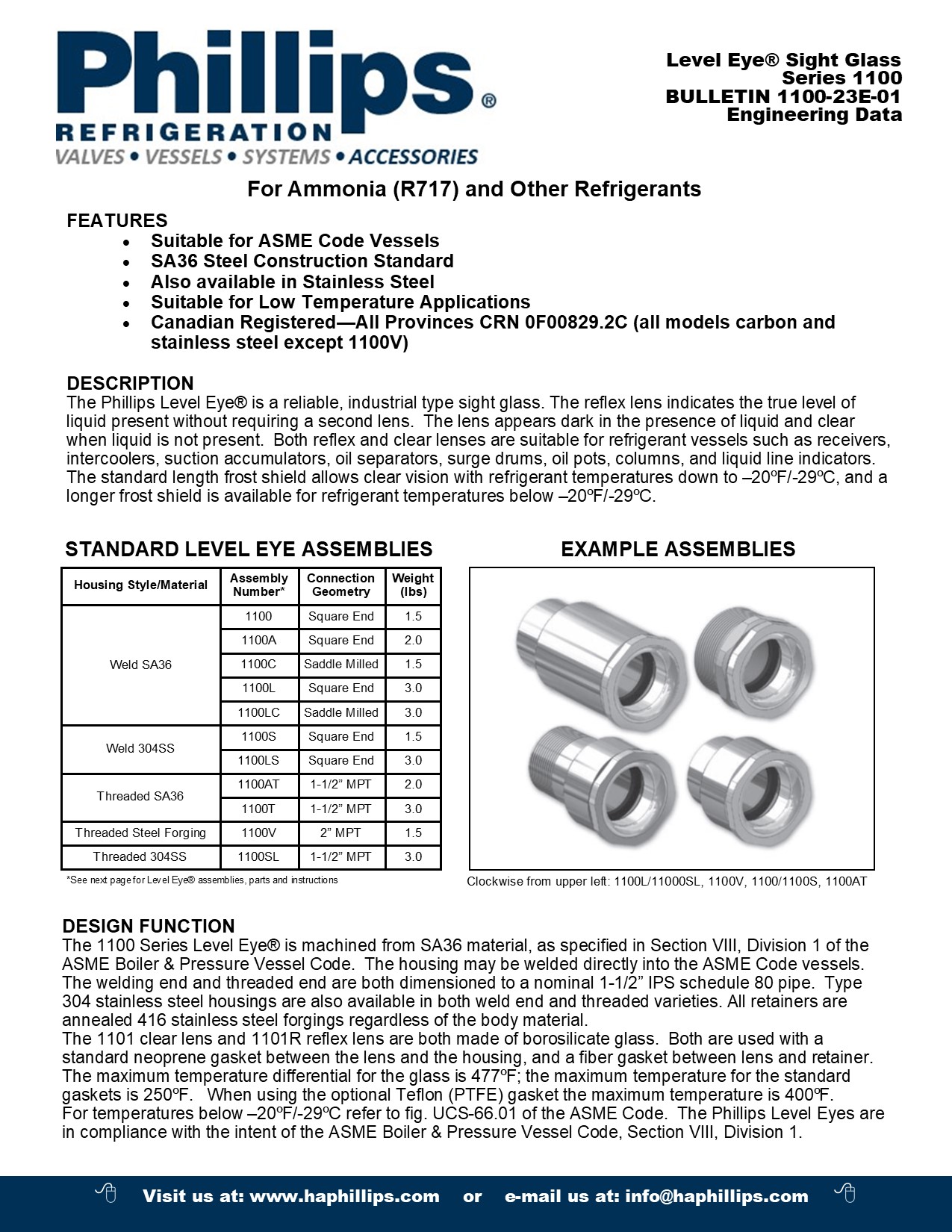

Literature
